Reference cases and projects

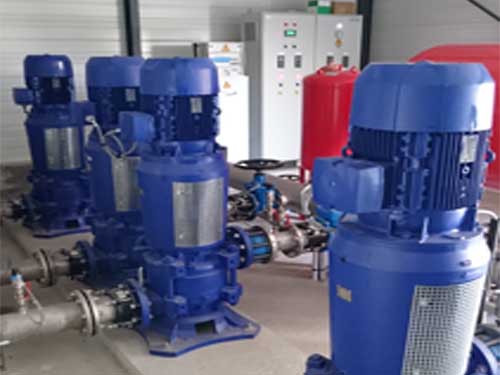

• 4 KSB brand electric pumps

• Type: Multitec V100/2-7.1 11.81
• Multicellular with vertical axis
• Flowrate: 60 m³/h
• TDH: 32 m
• Motor power: 11 kW
• On speed drive

• Stainless steel 316L DN80 to DN200 hydraulic pipes, including the following fittings:

• 11 gate valves
• 4 Clasar check valves
• 1 float valve
• 4 strainers

• Tanks :

• 1 downstream surge control tank of capacity 1500 litres, PS 10 bars, PE 14.3 bars, DN150
• 1 downstream hydrophore of capacity 200 litres, PS 10 bars, PE 14.3 bars, DN80

• 1 electromagnetic flowmeter DN200
• 8 pressure sensors
• 3 float-type level detectors
• 1 piezometric level probe with associated recorder

• Electricity :

• 1 x 63 A power/control cabinet
• 1 x 88 kVA generator set
• 1 automatic source inverter
• 1 Schneider Twido PLC
• Tertiary equipment

• Total flowrate: 240 m³/h
• TDH: 32 m

Total value of work: €123 740 excl. VAT
